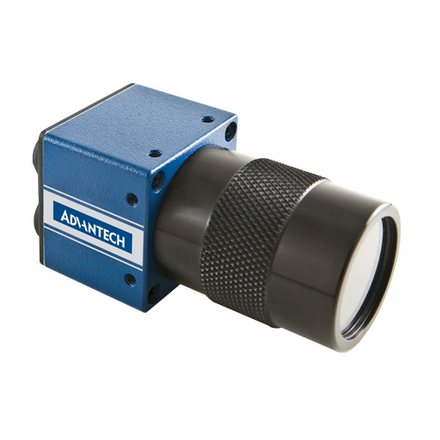

EagleEye Pro
0.3M-2M 單色/彩色智能相機
Main Features
  • 高度整合智能視覺系統
  • 單色/彩色CCD傳感器
  • 解析度支援高達200萬像素
  • 體積小巧適合有限空間配置
  • IP67保護等級
  • 可連結標準外部光源
  • 牢固工業用M12接頭
  • 豐富的指令函式庫，前處理和演算法，可解決各種復雜的視覺專案
  • 多組標準樣本的影像同時比對功能
  • 允許使用者開發演算法，撰寫腳本編程語言和設計操作界面
  • 本產品不包含鏡頭
     數據表(PDF)    技術資料下載
  規格表
　
AEE-C0640-PRE
AEE-C1024-PRE AEE-C1280-PRE AEE-M0640-PRE AEE-M1024-PRE AEE-M1280-PRE AEE-M1600-PRE
General Dimensions 44mm x 44mm x 56mm (without lens cover) 44mm x 44mm x 56mm (without lens cover) 44mm x 44mm x 56mm (without lens cover) 44mm x 44mm x 56mm (without lens cover) 44mm x 44mm x 56mm (without lens cover) 44mm x 44mm x 56mm (without lens cover) 44mm x 44mm x 56mm (without lens cover)
Exposure 22us to 1000ms 22us to 1000ms 22us to 1000ms 22us to 1000ms 22us to 1000ms 22us to 1000ms 22us to 1000ms
Image Mono or Color Progressive Scan Mono or Color Progressive Scan Mono or Color Progressive Scan Mono or Color Progressive Scan Mono or Color Progressive Scan Mono or Color Progressive Scan Mono or Color Progressive Scan
Memory 256 MB 256 MB 256 MB 256 MB 256 MB 256 MB 256 MB
Network 10/100 BaseT Ethernet 10/100 BaseT Ethernet 10/100 BaseT Ethernet 10/100 BaseT Ethernet 10/100 BaseT Ethernet 10/100 BaseT Ethernet 10/100 BaseT Ethernet
Operating Temperature -10~50°C ( 14~122°F ) -10~50°C ( 14~122°F ) -10~50°C ( 14~122°F ) -10~50°C ( 14~122°F ) -10~50°C ( 14~122°F ) -10~50°C ( 14~122°F ) -10~50°C ( 14~122°F )
Power 12-30V (via Ethernet or IO connectors, not PoE compliant), 150mA max@24V (device), 1A max (LAMP,EagleEye powering light source directly) 12-30V (via Ethernet or IO connectors, not PoE compliant), 150mA max@24V (device), 1A max (LAMP,EagleEye powering light source directly) 12-30V (via Ethernet or IO connectors, not PoE compliant), 150mA max@24V (device), 1A max (LAMP,EagleEye powering light source directly) 12-30V (via Ethernet or IO connectors, not PoE compliant), 150mA max@24V (device), 1A max (LAMP,EagleEye powering light source directly) 12-30V (via Ethernet or IO connectors, not PoE compliant), 150mA max@24V (device), 1A max (LAMP,EagleEye powering light source directly) 12-30V (via Ethernet or IO connectors, not PoE compliant), 150mA max@24V (device), 1A max (LAMP,EagleEye powering light source directly) 12-30V (via Ethernet or IO connectors, not PoE compliant), 150mA max@24V (device), 1A max (LAMP,EagleEye powering light source directly)
Protection IP67 IP67 IP67 IP67 IP67 IP67 IP67
Resolution 640x480 Color 1024x768 Color 1280x960 Color 640x480 Mono 1024x768 Mono 1280x960 Mono 1600x1200 Mono
Sensor 1/3 inch CCD 1/3 inch CCD 1/3 inch CCD 1/3 inch CCD 1/3 inch CCD 1/3 inch CCD 1/3 inch CCD
Serial Port RS-232 RS-232 RS-232 RS-232 RS-232 RS-232 RS-232
Shock 70G 70G 70G 70G 70G 70G 70G
Storage Temperature -60~80°C ( -140~176°F ) -60~80°C ( -140~176°F ) -60~80°C ( -140~176°F ) -60~80°C ( -140~176°F ) -60~80°C ( -140~176°F ) -60~80°C ( -140~176°F ) -60~80°C ( -140~176°F )
Input Common pin PWR or GND PWR or GND PWR or GND PWR or GND PWR or GND PWR or GND PWR or GND
Current ON:7.5mA type (24V applied) ON:7.5mA type (24V applied) ON:7.5mA type (24V applied) ON:7.5mA type (24V applied) ON:7.5mA type (24V applied) ON:7.5mA type (24V applied) ON:7.5mA type (24V applied)
Isolation 4000 VRMS 4000 VRMS 4000 VRMS 4000 VRMS 4000 VRMS 4000 VRMS 4000 VRMS
Latency 62 us from trigger input to start of acquisition 62 us from trigger input to start of acquisition 62 us from trigger input to start of acquisition 62 us from trigger input to start of acquisition 62 us from trigger input to start of acquisition 62 us from trigger input to start of acquisition 62 us from trigger input to start of acquisition
Switch Time ON:10 us, OFF:50 us ON:10 us, OFF:50 us ON:10 us, OFF:50 us ON:10 us, OFF:50 us ON:10 us, OFF:50 us ON:10 us, OFF:50 us ON:10 us, OFF:50 us
Voltage ON:12-30V, OFF:0-3V(12V nominal threshold) ON:12-30V, OFF:0-3V(12V nominal threshold) ON:12-30V, OFF:0-3V(12V nominal threshold) ON:12-30V, OFF:0-3V(12V nominal threshold) ON:12-30V, OFF:0-3V(12V nominal threshold) ON:12-30V, OFF:0-3V(12V nominal threshold) ON:12-30V, OFF:0-3V(12V nominal threshold)
Output Common pin PWR or GND PWR or GND PWR or GND PWR or GND PWR or GND PWR or GND PWR or GND
Current General purpose output: 100mA max (drives to OCMN when active), Strobe:100mA max (drives to Vin when active) General purpose output: 100mA max (drives to OCMN when active), Strobe:100mA max (drives to Vin when active) General purpose output: 100mA max (drives to OCMN when active), Strobe:100mA max (drives to Vin when active) General purpose output: 100mA max (drives to OCMN when active), Strobe:100mA max (drives to Vin when active) General purpose output: 100mA max (drives to OCMN when active), Strobe:100mA max (drives to Vin when active) General purpose output: 100mA max (drives to OCMN when active), Strobe:100mA max (drives to Vin when active) General purpose output: 100mA max (drives to OCMN when active), Strobe:100mA max (drives to Vin when active)
Protection PTC fuses to 100mA (GPO & STRB) PTC fuses to 100mA (GPO & STRB) PTC fuses to 100mA (GPO & STRB) PTC fuses to 100mA (GPO & STRB) PTC fuses to 100mA (GPO & STRB) PTC fuses to 100mA (GPO & STRB) PTC fuses to 100mA (GPO & STRB)
Switch Time ON:10 us, OFF:50 us ON:10 us, OFF:50 us ON:10 us, OFF:50 us ON:10 us, OFF:50 us ON:10 us, OFF:50 us ON:10 us, OFF:50 us ON:10 us, OFF:50 us
Voltage(Vin) 24V max 24V max 24V max 24V max 24V max 24V max 24V max
