| 18.5寸寬屏：FPM-7181W |

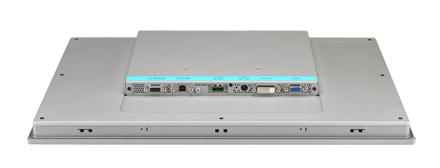

| 18.5" Industrial Monitor with Projected Capacitive Touchscreen, Direct-VGA and DVI Ports |
|
|
| Display |
Display Size |
18.5" |
| Display Type |
WXGA TFT LED LCD |
| Max. Colors |
16.2 M |
| Max. Resolution |
1366 x 768 |
| Backlight MTBF(hrs) |
50,000 |
| Luminance (cd/m2) |
300 |
| Viewing Angle (H/V°) |
170/160 |
| Contrast Ratio |
1000:01:00 |
| General |
Power Consumption |
35 W + 20% |
| Dimensions |
488 x 309 x 47.7 mm (19.21" x 12.17" x 1.88") |
| Power Input Voltage |
Phoenix Jack: 24 VDC input |
| DC Power Input(voltage) |
External 57 W powern adapter, with 100 ~ 240 VAC input and 12 VDC @ 4.75 A output |
| Video Port |
VGA & DVI-D |
| Weight (Net) |
6kg |
| Operating System |
Windows XP, Vista, 7, 8, XPe and Linux |
| OSD(onscreen display) |
in rear cover |
| Certifications |
BSMI, CCC, CE, FCC Class A, UL |
| Mounting |
Rear cover: SECC |
| Environment |
Operating Temperature |
0 ~ 55°C (32 ~ 131°F) |
| Storage Temperature |
-20 ~ 60°C (-4 ~ 140°F) |
| Waterproof |
Front panel is IP66 compliant |
| Touchscreen (Optional) |
Touchscreen |
Projected Capacitive Touch |
|
