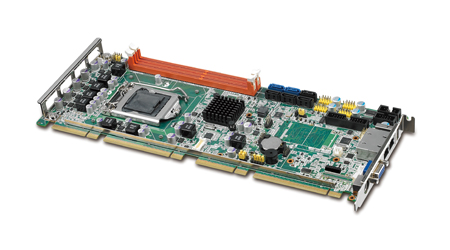

PCE-5126
LGA1155 Intel ? Corei7/i5/i3 單板電腦,支持DDR3 /雙GbE /SATA III
Main Features
  • LGA 1155 Intel ® 酷睿™ i7/i5/i3/至強® 處理器
  • 雙通道(ECC) DDR3 1333 MHz，最大支持8GB
  • 支持SATA RAID 0, 1, 5, 10, AMT7.0, TPM 1.2 (可選)
  • IPMI 帶外遠程管理功能(可選IPMI 模塊)
  • 支持嵌入式軟件APIs 和應用程序
     數據表(PDF)    技術資料下載
  規格表
　 PCE-5126QG2-00A1E PCE-5126QVG-00A1E PCE-5126WG2-00A1E
I/O USB2.0 13 13 13
Form Factor Form Factor PICMG1.3 PICMG1.3 PICMG1.3
Processor System CPU Intel Core i3/i5/i7 Intel Core i3/i5/i7 Intel Xeon E3-1275/1225
CPU TDP Up to 95 W Up to 95 W Up to 95 W
Frequency Up to 3.4 GHz Up to 3.4 GHz Up to 3.4 GHz
Core Number 4 4 4
L2 Cache - - -
L3 Cache 8MB 8MB 8MB
BIOS AMI 64 Mbit AMI 64 Mbit AMI 64 Mbit
Chipset Intel Q67 Intel B65 Intel C206
Integrated Graphics Yes Yes Yes
FSB - - -
Memory Technology DDR3 1066/1333 MHz DDR3 1066/1333 MHz DDR3 1066/1333 MHz
Capacity Up to 16GB Up to 16GB Up to 16GB
ECC Support - - Yes
Socket 1 x 240-pin DDR3 1 x 240-pin DDR3 1 x 240-pin DDR3
Display Controller Intel HD graphics Integrated Intel HD graphics Integrated Intel HD graphics Integrated
Graphic Memory Shared with system memory up to 1GB Shared with system memory up to 1GB Shared with system memory up to 1GB
Multiple Display Dual - Dual
Display Interface VGA: Up to 2048 x 1536 DVI: Up to 1920 x 1200 VGA: Up to 2048 x 1536 VGA: Up to 2048 x 1536 DVI: Up to 1920 x 1200
Expansion Interface PCI Express x 16 1 1 1(or 2 PCIe x8)
PCI Express x 4 1 1 1
PCI 4 4 4
Ethernet Controller LAN1: Intel 82579LM LAN2: Intel 82583V LAN1: Intel 82579LM LAN1: Intel 82579LM LAN2: Intel 82574L
Speed 10/100/1000 Mbps 10/100/1000 Mbps 10/100/1000 Mbps
Connector 2 x RJ45 2 x RJ45 2 x RJ45
WatchDog Timer Output System Reset System Reset System Reset
Interval Programmable 1~255 sec Programmable 1~255 sec Programmable 1~255 sec
Storage CFast - - -
CompactFlash - - -
I/O SATA 2 x SATA III (Raid 0, 1, 5, 10) 4 x SATA II (Raid 0, 1, 5, 10) 1 x SATA III 5 x SATA II 2 x SATA III (Raid 0, 1, 5, 10) 4 x SATA II (Raid 0, 1, 5, 10)
IDE - - -
Floppy - - -
GPIO 8-bit 8-bit 8-bit
LPT 1 1 1
COM Port 2 x RS232 2 x RS232 2 x RS232
PS/2 Keyboard/Mouse 1 1 1
System Fan 1 1 1
Rear I/O Interface USB2.0 1 - 1
COM - 1 x RS232 -
PS/2 2 (1 x Keyboard, 1 x Mouse) 2 (1 x Keyboard, 1 x Mouse) 2 (1 x Keyboard, 1 x Mouse)
Ethernet 2 1 2
VGA 1 1 1
Power Requirement Voltage +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V
Current 6.65A/1.62A/1.98A/
0.73A/0.13A/0A		 6.65A/1.62A/1.98A
/0.73A/0.13A/0A		 6.65A/1.62A/1.98A/
0.73A/0.13A/0A
Environment Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -40~ 85° C and 60° C @ 95% RH Non-Condensing -40~ 85° C and 60° C @ 95% RH Non-Condensing -40~ 85° C and 60° C @ 95% RH Non-Condensing
Non-Operating Vibration 2 Grms 2 Grms 2 Grms
Physical Characteristics Dimensions (LxW) 338 x 122 mm (13.3" x 4.8") 338 x 122 mm (13.3" x 4.8") 338 x 122 mm (13.3" x 4.8")
Weight 0.5 kg 0.5 kg 0.5 kg
Certification EMC CE, FCC CE, FCC CE, FCC
Management Solution Out of band remote management AMT - AMT/IPMI
