首頁 》 研華產品 》智能系統(tǒng) 》插槽式單板電腦 》PICMG 1.0單板計算機(SBC) 》PCA-6011

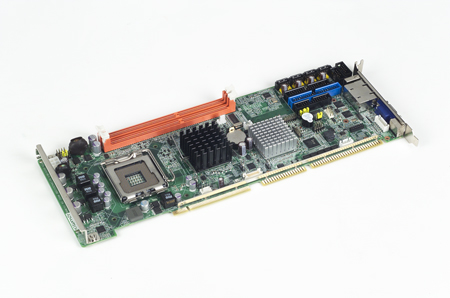

PCA-6011
LGA775 Intel? Core 2 Quad? 全長CUP卡,帶 VGA/DVI/雙GbE端口
Main Features
  • Compliant with PICMG 1.0
  • Supports LGA 775 Intel® Core™2 Quad FSB 1333 MHz processors
  • Supports Dual Channel DDR3 1333 SDRAM up to 8 GB
  • Dual GbE LAN via two PCIe x1 lane
  • 2 COM ports, 4 SATA ports, 8 USB ports
     數據表(PDF)    技術資料下載
  規(guī)格表
　 PCA-6012G2-00A1E PCA-6012VG-00A1E
Form Factor Form Factor PICMG1.0 PICMG1.0
Processor System CPU Intel Atom D525 Intel Atom N455
CPU TDP Up to 13 W Up to 6.5W
Frequency Up to 1.8 GHz Up to 1.66 GHz
Core Number 2 1
L2 Cache 1MB 512KB
BIOS AMI 16 MBit AMI 16 MBit
Chipset Intel ICH8M Intel ICH8M
Integrated Graphics Yes Yes
FSB - -
Memory Technology DDR3 800/667 MHz DDR3 667 MHz
Capacity Up to 4GB Up to 2GB
Socket 1 x 204-pin DDR3 2 x 204-pin DDR3
Display Controller Intel HD graphics Integrated Intel HD graphics Integrated
Graphic Memory Shared with system memory up to 256MB Shared with system memory up to 256MB
Multiple Display Dual Single
Display Interface VGA: Up to 2048 x 1536 LVDS: Up to 1366 x 768 VGA: Up to 1400 x 1050
Expansion Interface PCI 1 1
ISA 1 1
LPC 1 1
SMBus 1 1
I2C Bus 1 1
Ethernet Controller LAN1: Intel 82567V LAN2: Intel 82583V LAN1: Intel 82567V
Speed 10/100/1000 Mbps 10/100/1000 Mbps
Connector 2 x RJ45 1 x RJ45
WatchDog Timer Output System Reset System Reset
Interval Programmable 1~255 sec Programmable 1~255 sec
I/O SATA 3 x SATA II 3 x SATA II
Compact Flash 1 -
IDE 1 1
Floppy 1 1
USB2.0 9 8
GPIO 8-bit 8-bit
LPT 1 1
COM Port 2 x RS232 2 x RS232
PS/2 Keyboard/Mouse 1 1
System Fan 1 -
COM - 1 x RS232
Ethernet 2 1
VGA 1 1
Power Requirement Voltage +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V
Current 0.44A/3.71A/0A/0.15A/0A/0A 0.16A/2.81A/0A/0.13A/0A/0A
Environment Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -40~ 85° C and 60° C @ 95% RH Non-Condensing -40~ 85° C and 60° C @ 95% RH Non-Condensing
Non-Operating Vibration 2 Grms 2 Grms
Physical Characteristics Dimensions (LxW) 338 x 122 mm (13.3" x 4.8") 338 x 122 mm (13.3" x 4.8")
Weight 0.5 kg 0.5 kg
Certification EMC CE, FCC CE, FCC
