ASMB-781G2-00A1E |
ASMB-781G4-00A1E |
| Form Factor |
Form Factor |
ATX |
ATX |
| Processor System |
CPU |
Intel Xeon E3 1275 |
Intel Xeon E3 1275 |
| CPU TDP |
Up to 95 W |
Up to 95 W |
| Frequency |
Up to 3.4 GHz |
Up to 3.4 GHz |
| Core Number |
4 |
4 |
| L3 Cache |
8MB |
8MB |
| BIOS |
AMI EFI 64 Mbit |
AMI EFI 64 Mbit |
| Chipset |
Intel C206 |
Intel C206 |
| Integrated Graphics |
- |
- |
| DMI |
- |
- |
| QPI |
- |
- |
| Memory |
Technology |
DDR3 1333 MHz |
DDR3 1333 MHz |
| Capacity |
Up to 32 GB (8 GB per DIMM) |
Up to 32 GB (8 GB per DIMM) |
| ECC Support |
Yes |
Yes |
| Socket |
4 x 240-pin DIMM |
4 x 240-pin DIMM |
| REG Support |
- |
- |
| Display |
Controller |
Aspeed AST2300 |
Aspeed AST2300 |
| Graphic Memory |
DDR3 64 MB |
- |
| Multiple Display |
- |
- |
| Display Interface |
VGA: Up to1920 x 1200 |
VGA: Up to1920 x 1200 |
| Expansion Interface |
PCI Express x 16 |
2 |
2 |
| PCI Express x 8 |
- |
- |
| PCI Express x 4 |
1 |
1 |
| PCI Express x 1 |
1 |
1 |
| PCI |
3 |
3 |
| LPC |
1 |
1 |
| SMBus |
1 |
1 |
| PME |
- |
- |
| Ethernet |
Controller |
LAN1: Intel 82579LM LAN2: Intel 82574L |
LAN1: Intel 82579LM LAN2: Intel 82574L LAN3: Intel 82580DB LAN4: Intel 82580DB |
| Speed |
10/100/1000 Mbps |
10/100/1000 Mbps |
| Connector |
2 x RJ45 |
4 x RJ45 |
| WatchDog Timer |
Output |
System Reset |
System Reset |
| Interval |
Programmable 1~255 sec |
Programmable 1~255 sec |
| I/O |
SATA |
6 x SATA II (RAID 0, 1, 10) |
6 x SATA II (RAID 0, 1, 10) |
| SAS Port |
- |
- |
| SAS controller |
- |
- |
| USB3.0 |
- |
- |
| USB2.0 |
10 |
10 |
| GPIO |
8-bit |
8-bit |
| LPT |
1 |
1 |
| COM Port |
1 (RS232) |
- |
| PS/2 Keyboard/Mouse |
1 |
1 |
| SPDIF |
- |
- |
| System Fan |
4 |
4 |

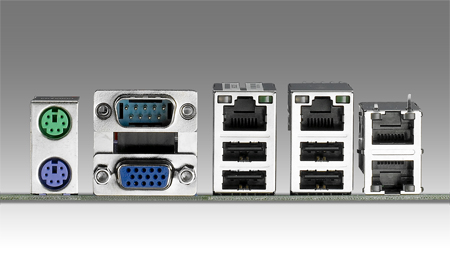

| Rear I/O Interface |
Display |
1 |
1 |
| LAN |
2 |
4 |
| USB3.0 |
- |
- |
| USB2.0 |
4 |
4 |
| COM |
1 (RS232) |
1 x RS232 |
| PS/2 |
2 (1 x Keyboard, 1 x Mouse) |
2 (1 x Keyboard, 1 x Mouse) |
| DVI |
- |
- |
| Ethernet |
2 |
4 |
| VGA |
1 |
1 |
| Power Requirement |
Voltage |
+12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total |
+12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total |
| Current |
0.08 A/1.12 A/2.74 A/1.81 A/4.86 A/0.01 A |
0.4 A/1.39 A/4.69 A/1.95 A/3.01 A/0.01 A |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature |
-40~ 85° C and 60° C @ 95% RH Non-Condensing |
-40~ 85° C and 60° C @ 95% RH Non-Condensing |
| Non-Operating Vibration |
3.5 Grms |
3.5 Grms |
| Physical Characteristics |
Dimensions (LxW) |
304.8 x 244 mm (12" x 9.6") |
304.8 x 244 mm (12" x 9.6") |
| Weight |
0.8 kg (1.8 lb) |
0.8 kg (1.8 lb) |
| Certification |
EMC |
CE, FCC |
CE, FCC |
| Management Solution |
Software |
- |
- |
| Out of band remote management |
- |
- |
