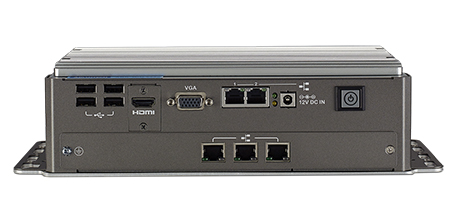

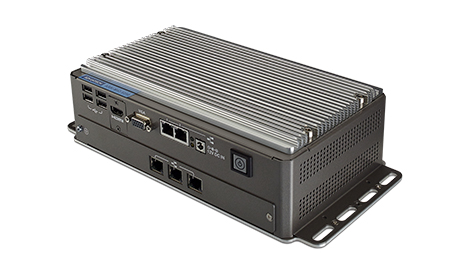

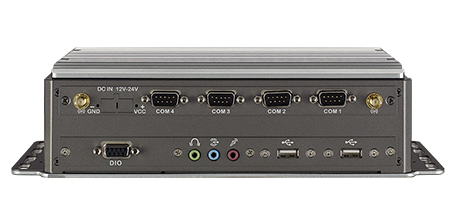

MIOS-5250
Intel? Atom? N2600/D2550 Fanless Embedded Box PC with Multiple I/O Extension Module
Main Features
  • Intel® Atom™ N2600 1.6 GHz/D2550 1.86 GHz Fanless Embedded Box PC, DDR3 memory supports up to 4 GB
  • Rich I/O Expansion Possibilities through modularized design
  • Various extension modules for selection: multiple serial-port / GbE, CAN Bus, PoE
  • Optimized thermal design to maximize heat dissipation
  • Fast customization for module, I/O bracket, color and logo
  • 12~24V / 12V only DC power input for choice
  • Wire clip design to prevent from adapter cable disconnecting
  • Supports iManager, SUSIAccess and Embedded Software APIs
     數據表(PDF)    技術資料下載
  規格表
　
MIOS-5250DS8-C0A1E
MIOS-5250NS6-D0A1E
Processor CPU Intel Atom Dual Core D2550 1.86 GHz Intel Atom Dual Core N2600 1.6 GHz
Max Speed Dual Core 1.86 GHz Dual Core 1.6 GHz
L2 Cache 1 MB 1 MB
System Chipset Intel Atom D2550 + Intel NM10 Intel Atom D2600 + Intel NM10
BIOS AMI 16 Mbit AMI 16 Mbit
Memory Technology DDR3 1066 MHz (D2550) DDR3 800 MHz (N2600)
Max. Capacity 4 GB 4 GB
Socket 1 x 204 pin SO-DIMM 1 x 204-pin SO-DIMM
Graphics Chipset Intel Atom D2550 Intel Atom N2600
Graphic Engine DirectX 9 and OpenGL3.0 support Hardware decode H/W acceleration: MPEG2 H/W Decode/Acceleration: H.264/VC1/WMV9 DirectX 9 and OpenGL3.0 support Hardware decode H/W acceleration: MPEG2 H/W Decode/Acceleration: H.264/VC1/WMV9
VGA Up to 1920 x 1200 Up to 1920 x 1200
HDMI Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 Up to 1080p support Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 Up to 1080p support
Dual Display Yes, VGA + HDMI Yes, VGA + HDMI
Ethernet LAN1 10/100/1000 Mbps Intel 82583V Ethernet controller, support Wake On Lan 10/100/1000 Mbps Intel 82583V Ethernet controller, support Wake On Lan
LAN2 10/100/1000 Mbps Intel 82583V Ethernet controller, support Wake On Lan 10/100/1000 Mbps Intel 82583V Ethernet controller, support Wake On Lan
Audio Interface Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in
I/O Interface Serial Port 4 x RS-232 Ports with ESD protection : Air gap ±15kV, Contact ±8kV 4 x RS-232 Ports with ESD protection : Air gap ±15kV, Contact ±8kV
USB Interface 6 x USB ports, USB 2.0 Compliant 6 x USB ports, USB 2.0 Compliant
Other Digital IO 8-bits 8-bits
Watchdog Timer 255 levels timer interval, setup by software 255 levels timer interval, setup by software
Expansion Mini PCIe 1 x full size Mini PCIe with SIM holder 1 x full size Mini PCIe with SIM holder
Storage HDD Supports one drive bay for SATA 2.5" HDD (Compatible with 9mm height HDD) Supports one drive bay for SATA 2.5" HDD (Compatible with 9mm height HDD)
mSATA 1 (Support either mSATA or full size miniPCIe, selected by BIOS, default support miniPCIe) 1 (Support either mSATA or full size miniPCIe, selected by BIOS, default support miniPCIe)
Support Extension Module MIOe-210 4 x RS232/422/485, 2 x RS422/485 4 x RS232/422/485, 2 x RS422/485
MIOe-220 3 x Intel Gigabit Ethernet 3 x Intel Gigabit Ethernet
MIOe-3674 4 x Gigiabit Ethernet with PoE ports 4 x Gigiabit Ethernet with PoE ports
MIOe-3680 2 x CAN Bus 2 x CAN Bus
Power Requirement Power Type AT/ATX AT/ATX
Power Input Votage 12 VDC (Phoenix connector) 12 VDC (DC Jack in front side)
Minimum Power Input 12 V DC / 3A 12 V DC / 3A
Mechanical Construction Plastic Part: PC+ABS(LG5001RFP)Chassis: SECC Bottom Cover: Aluminum Heatsink: Aluminum 6063-T5 Metal Parts: SECC Plastic Part: PC+ABS(LG5001RFP)Chassis: SECC Bottom Cover: Aluminum Heatsink: Aluminum 6063-T5 Metal Parts: SECC
Mounting Din-Rail mounting, Desk/wall-mounting, VESA mounting Din-Rail mounting, Desk/wall-mounting, VESA mounting
Dimensions 284.6 x 151.6 x 74.5 mm (11.2" x 5.96" x 2.9") 284.6 x 151.6 x 74.5 mm (11.2" x 5.96" x 2.9")
Weight 2.3 kg (5.07 lb), with HDD, MIOe-210 and Wifi module inside) 2.3 kg (5.07 lb), with HDD, MIOe-210 and Wifi module inside)
Environment Operating Temperature 0 ~ 45° C (32 ~ 113° F) with 0.7m/s air flow 0 ~ 45° C (32 ~ 113° F) with 0.7m/s air flow
Storage Temperature -40 ~ 85° C (-40 ~ 185° F) -40 ~ 85° C (-40 ~ 185° F)
Relative Humidity 95% @ 40° C (non-condensing) 95% @ 40° C (non-condensing)
Vibration during Operation With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
EMC CE/FCC Class A, CCC CE/FCC Class A, CCC
Shock During Operation With SSD: 10 G, IEC 60068-2-27, half sine, 11 ms duration With SSD: 10 G, IEC 60068-2-27, half sine, 11 ms duration
Safety Certifications UL, CCC, CB UL, CCC, CB
