ARK-2151V-S9A1E |
| Processor |
CPU |
Intel Celeron 2980U Dual Core |
Intel i5-4300U Dual Core |
| Frequency |
1.6 GHz |
1.9 GHz |
| L3 Cache |
2 MB |
3 MB |
| BIOS |
AMI EFI 128Mbit |
AMI EFI 128Mbit |
| Memory |
Technology |
DDR3L 1333 MHz |
DDR3L 1600 MHz |
| Max. Capacity |
8 GB |
8 GB |
| Socket |
1 x 204-pin SO-DIMM |
1 x 204-pin SO-DIMM |
| Graphics |
Chipset |
HD Graphics |
GT2-4400 Graphics |
| Graphic Engine |
DirectX11.1, OpenGL 4.0, and OpenCL 1.2,Full AVC/VC1/MPEG2 HW Decode |
DirectX11.1, OpenGL 4.0, and OpenCL 1.2,Full AVC/VC1/MPEG2 HW Decode |
| VGA |
Up to 1920 x 1200 with 60 Hz, 154 MHz pixel clock rate |
Up to 1920 x 1200 with 60 Hz, 154 MHz pixel clock rate |
| HDMI |
Lockable HDMI connector, up to 4096 x 2304 at 24 Hz |
Lockable HDMI connector, up to 4096 x 2304 at 24 Hz |
| Audio |
Main System |
Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in |
Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in |
| Cellular Voice |
Support WWAN voice function, Line-out, Mic-in |
Support WWAN voice function, Line-out, Mic-in |
| Ethernet |
LAN1 |
10/100/1000 Mbps Intel I218 GbE, support Wake on LAN |
10/100/1000 Mbps Intel I218 GbE, support Wake on LAN |
| LAN2 |
10/100/1000 Mbps Intel I210-IT, support Wake on LAN |
10/100/1000 Mbps Intel I210-IT, support Wake on LAN |
| I/O Interface |

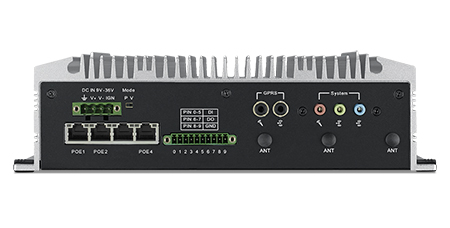

Power over Ethernet, PoE |
N/A |
4 x 10/100 Mbps - 4ports full-load, IEEE802.3af Class 2 (7Watt) - 2ports full-load, IEEE802.3af Class 3 (15.4Watt) |
| Serial Port |
2 x RS-232/422/485 ports w/ 3KV isolation (support auto flow control, jumper selectable) |
N/A |
| Optional COM or CANBus |
2 x DB9 connectors for RS-232/422/485 signal (Default) or CANBus 2.0A/B (Module option) |
2 x DB9 connectors for RS-232/422/485 signal (Default) or CANBus 2.0A/B (Module option) |
| USB Interface |
2 x USB 2.0 & 2 x USB3.0 |
2 x USB 2.0 & 2 x USB3.0 |
| GPIO |
6 x DI & 2 x DO w/ 3KV isolation Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel On-state Voltage: 24 VDC nominal, open collector to 30 VDC |
6 x DI & 2 x DO w/ 3KV isolation Input Voltage: 0 to 30 VDC, Output Current: Max. 500 mA per channel On-state Voltage: 24 VDC nominal, open collector to 30 VDC |
| Other |
GPS |
On board standalone GPS, support GPS, GLONASS, GALILEO and QZSS signals |
On board standalone GPS, support GPS, GLONASS, GALILEO and QZSS signals |
| G-Sensor |
On board high resolution G-Sensor, up to 13-bit resolution at ± 16g |
On board high resolution G-Sensor, up to 13-bit resolution at ± 16g |
| Watchdog Timer |
255 levels timer interval, setup by software |
255 levels timer interval, setup by software |
| Expansion |
Mini PCIe #1 |
Full-size Mini PCIe, support mSATA |
Full-size Mini PCIe, support mSATA |
| Mini PCIe #2 |
Half-size Mini PCIe, support WLAN module |
Half-size Mini PCIe, support WLAN module |
| Mini PCIe #3/4 |
2x Full-size Mini PCIe w/SIM holders, support WWAN module |
2x Full-size Mini PCIe w/SIM holders, support WWAN module |
| Storage |
2.5" Drive Bay |
1x Hot-swappable 2.5" drive bay (Max 9.5mm height) |
1x Hot-swappable 2.5" drive bay (Max 9.5mm height) |
| mSATA |
Laverage MiniPCIe #1 slot |
Laverage MiniPCIe #1 slot |
| Software Support |
Microsoft Windows |
WES8, WES7, Windows 8, Windows 7 |
WES8, WES7, Windows 8, Windows 7 |
| Linux |
Support by project |
Support by project |
| Power Requirement |
Power Type |
AT/ATX |
AT/ATX |
| Power Input Votage |
9 ~ 36 VDC w/isolation |
9 ~ 36 VDC w/isolation |
| Vehicle Power Ignition |
Selectable boot-up & shut-down voltage, on/off delay time |
Selectable boot-up & shut-down voltage, on/off delay time |
| Isolation |
1.5KV Isolated |
1.5KV Isolated |
| Mechanical |
Construction |
Aluminum housing, Silver |
Aluminum housing, Silver |
| Mounting |
Din-Rail mounting, Desk/wall-mounting, VESA mounting |
Din-Rail mounting, Desk/wall-mounting, VESA mounting |
| Dimensions |
264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24") |
264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24") |
| Environment |
Operating Temperature |
With extended temperature peripherals: -30~70° C with 0.7m/s air flow With standard temperature peripherals: 0 ~ 45° C with 0.7m/s air flow |
With extended temperature peripherals:-20 ~ 60° C with 0.7m/s air flow,With standard temperature peripherals:0 ~ 45° C with 0.7m/s air flow |
| Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F) |
-40 ~ 85° C (-40 ~ 185° F) |
| Relative Humidity |
95% @ 40° C (non-condensing) |
95% @ 40° C (non-condensing) |
| Vibration/Shock |
With mSATA/SSD: IEC 60721-3-5 Class 5M3 |
With mSATA/SSD: IEC 60721-3-5 Class 5M3 |
| Regulation |
EMC |
CE/FCC Class A, CCC, BSMI |
CE/FCC Class A, CCC, BSMI |
| Safety |
UL, CCC, BSMI, E-Mark (E13) |
UL, CCC, BSMI, E-Mark (E13) |
| In-Vehicle Power |
ISO7637-2 Lev.4 |
ISO7637-2 Lev.4 |
