ACP-4320MB-00BE |
ACP-4320MB-40BE |

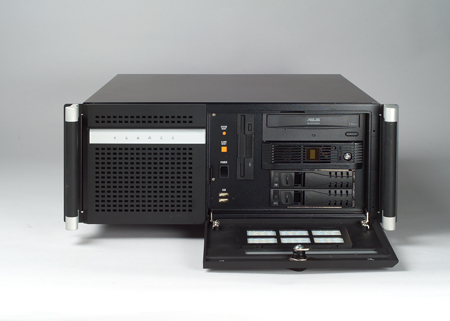

| Disk Drive Bay |
5.25 External Bay |
2 |
2 |
2 |
2 |
| 3.5" Front-Accessible |
2 (compatible with 3.5" or 2.5" devices) |
2 (compatible with 3.5" or 2.5" devices) |
2 (compatible with 3.5" or 2.5" devices) |
2 (compatible with 3.5" or 2.5" devices) |
| Cooling |
Fan |
1(12 cm/74 CFM) + 1 (6cm / 28 CFM) |
1(12 cm/74 CFM) + 1 (6cm / 28 CFM) |
1(12 cm/74 CFM) + 1 (6cm / 28 CFM) |
1(12 cm/74 CFM) + 1 (6cm / 28 CFM) |
| Air Filter |
Yes |
Yes |
Yes |
Yes |
| System Fan |
System fan speed referring to chassis thermal sensor, or CPU temperature |
System fan speed referring to chassis thermal sensor, or CPU temperature |
System fan speed referring to chassis thermal sensor, or CPU temperature |
System fan speed referring to chassis thermal sensor, or CPU temperature |
| Front I/O Interface |
USB2.0 |
2 |
2 |
2 |
2 |
| Miscellaneous |
LED Indicators |
Power, HDD, temperature, fan, LAN1, and LAN2 |
Power, HDD, temperature, fan, LAN1, and LAN2 |
Power, HDD, temperature, fan, LAN1, and LAN2 |
Power, HDD, temperature, fan, LAN1, and LAN2 |

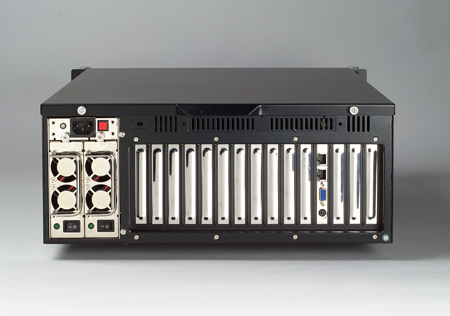

| Rear Panel |
One 9-pin D-Sub opening |
One 9-pin D-Sub opening |
Five 9-pin D-Sub & one 68-pin SCSI openings |
Five 9-pin D-Sub & one 68-pin SCSI openings |
| Intelligent System Module |
Remote Monitoring |
CPU/System fan speed , CPU/System temperature , motherboard voltage |
CPU/System fan speed , CPU/System temperature , motherboard voltage |
CPU/System fan speed , CPU/System temperature , motherboard voltage |
CPU/System fan speed , CPU/System temperature , motherboard voltage |
| Environment |
Operational Temperature |
0 ~ 40° C (32 ~ 104° F) |
0 ~ 40° C (32 ~ 104° F) |
0 ~ 40° C (32 ~ 104° F) |
0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature |
-20 ~ 60° C (-4 ~ 140° F) |
-20 ~ 60° C (-4 ~ 140° F) |
-20 ~ 60° C (-4 ~ 140° F) |
-20 ~ 60° C (-4 ~ 140° F) |
| Operating Humidity |
10 ~ 85% @ 40° C, non-condensing |
10 ~ 85% @ 40° C, non-condensing |
10 ~ 85% @ 40° C, non-condensing |
10 ~ 85% @ 40° C, non-condensing |
| Non-Operating Humidity |
10 ~ 95% @ 40° C, non-condensing |
10 ~ 95% @ 40° C, non-condensing |
10 ~ 95% @ 40° C, non-condensing |
10 ~ 95% @ 40° C, non-condensing |
| Operating Vibration (5 ~ 500 Hz) |
1 Grms |
1 Grms |
1 Grms |
1 Grms |
| Non-Operating Vibration (5 ~ 500 Hz) |
2 G |
2 G |
2 G |
2 G |
| Operating Shock |
10 G (with 11 ms duration, half sine wave) |
10 G (with 11 ms duration, half sine wave) |
10 G (with 11 ms duration, half sine wave) |
10 G (with 11 ms duration, half sine wave) |
| Non-Operating Shock |
30 G |
30 G |
30 G |
30 G |
| Physical Characteristics |
Dimensions (W x H x D) |
482 x 177 x 479 mm (19" x 7" x 18.9") |
482 x 177 x 479 mm (19" x 7" x 18.9") |
482 x 177 x 479 mm (19" x 7" x 18.9") |
482 x 177 x 479 mm (19" x 7" x 18.9") |
| Weight |
17.6 kg (38.7 lb) |
17.6 kg (38.7 lb) |
17.6 kg (38.7 lb) |
17.6 kg (38.7 lb) |
