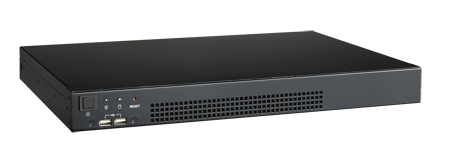

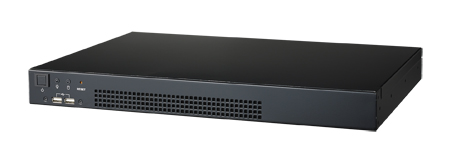

IPC-120
Cost Effective Compact 1U Rackmount Chassis for Half-size SBC



  • Compact, space-saving 1U rackmount chassis
  • Supports half-size SBC and up to 2 expansion cards
  • Supports 80plus single power supply up to 350W
  • Optional fan for cooling high performance add-on card
       數據表(PDF)     技術資料下載
  規格表

IPC-120BP-00XE
Cooling Air Filter Yes
Fan 1 (4 cm / 6.5 CFM)
Disk Drive Bay 2.5" Internal 2
Environment Non-Operating Vibration 2 G
Non-Operating Humidity 10 ~ 95% @ 60° C, non-condensing
Non-Operational Temperature -40 ~ 70° C (-40 ~ 156° F)
Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Shock 10 G (with 11 ms duration, half sine wave)
Front I/O Interface USB 2
Miscellaneous LED Indicators Power, HDD
Rear Panel Two 9-pin D-Sub openings
Physical Characteristics Dimensions (W x H x D) 480 x 44 x 300 mm (19" x 1.7" x 11.8")
Weight 3.1 kg (6.82 lb)
