ACP-1010MB-00BE |
| Disk Drive Bay |
Slim ODD |
1 |
1 |
| 3.5" Front-Accessible |
1 |
1 |
| Cooling |
System Fan |
4 (4 cm/24 CFM x 3 + 15 CFM x 1) |
2 (4 cm/24 CFM each) |

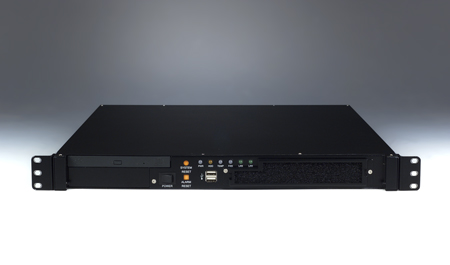

| Front I/O Interface |
USB2.0 |
2 |
2 |
| Miscellaneous |
LED Indicators |
Power, HDD, temperature, fan, LAN1, and LAN2 |
Power, HDD, temperature, fan, LAN1, and LAN2 |
| Control |
Power / System reset / Alarm reset switch |
Power / System reset / Alarm reset switch |

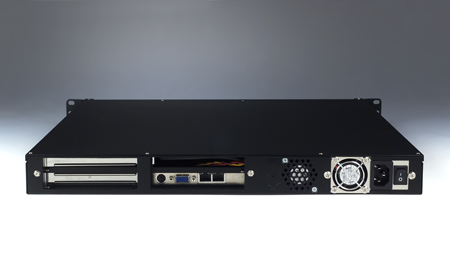

| Rear Panel |
One 9-pin D-Sub opening |
One 9-pin D-Sub opening |
| Environment |
Non-Operating Humidity |
10 ~ 95% @ 40° C, non-condensing |
10 ~ 95% @ 40° C, non-condensing |
| Operational Temperature |
0 ~ 40° C (32 ~ 104° F) |
0 ~ 40° C (32 ~ 104° F) |
| Non-Operational Temperature |
-20 ~ 60° C (-4 ~ 140° F) |
-20 ~ 60° C (-4 ~ 140° F) |
| Operating Humidity |
10 ~ 85% @ 40° C, non-condensing |
10 ~ 85% @ 40° C, non-condensing |
| Operating Vibration |
0.5 Grms |
0.5 Grms |
| Non-Operating Vibration |
2 Grms |
- |
| Operating Shock |
10 G (with 11 ms duration, half sine wave) |
10 G (with 11 ms duration, half sine wave) |
| Non-Operating Shock |
30 G |
30 G |
| Physical Characteristics |
Dimensions (W x H x D) |
480 x 44 x 497 mm (19" x 1.7" x 19.6") |
480 x 44 x 497 mm (19" x 1.7" x 19.6") |
| Weight |
8 kg (17.6 lb) |
8 kg (17.6 lb) |
